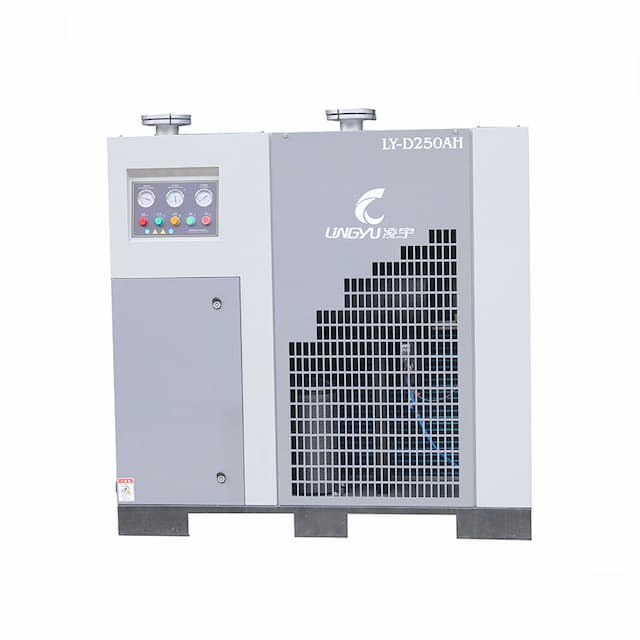

1130 scfm refrigerated air dryer（Air Cooled）
The 1130 SCFM refrigerated air dryer (air cooled) is a high-capacity, energy-efficient solution designed to eliminate moisture from compressed air systems in demanding industrial environments. With a robust air-cooled refrigeration system and a processing capacity of 1130 SCFM, this dryer delivers consistent performance and reliable dew point control to protect downstream equipment and ensure production continuity.
Product Overview
Key Features
✅ High Processing Capacity: Handles compressed air volumes up to 1130 SCFM, ideal for large-scale systems.
✅ Air Cooled System: Eliminates the need for water cooling infrastructure, reducing installation and operational costs.
✅ Stable Dew Point: Maintains a reliable pressure dew point between 2–10°C (35.6–50°F), preventing condensation and corrosion.
✅ Efficient Refrigeration Circuit: Equipped with a durable scroll or rotary compressor for low energy consumption.
✅ User-Friendly Interface: Real-time monitoring, alarms for high temperature, and system status indicators.
✅ Automatic Condensate Drain: Ensures consistent moisture discharge without manual intervention.
The 1130 SCFM refrigerated air dryer (air cooled) is engineered for performance, reliability, and long-term value.
Operating Conditions & Technical Requirements
Inlet Air Pressure: 4 – 10 bar (58 – 145 psi)
Inlet Air Temperature: ≤ 45°C (113°F)
Ambient Temperature: 5 – 45°C (41 – 113°F)
Installation Location: Indoor, well-ventilated, dust-free environment
Power Supply: 380V / 3Ph / 50Hz (or customizable)
Refrigerant Type: R407C or R134a (environmentally friendly options)
Recommended Filters: Pre-filter and after-filter for optimal protection and air quality
Technical Specifications
Model | 1130 SCFM Refrigerated Air Dryer (Air Cooled) |
|---|---|
Capacity | 1130 SCFM (Standard Cubic Feet per Minute) |
Cooling Method | Air Cooled |
Power Supply | 380V / 3Ph / 50Hz |
Max Operating Pressure | 10 bar |
Pressure Dew Point | 2 – 10°C |
Refrigerant | R407C / R134a |
Connection Size | 3″ NPT or Flanged |
Dimensions (L×W×H) | 1850 × 1100 × 1800 mm |
Weight | 520 kg |
The 1130 SCFM refrigerated air dryer (air cooled) is built for durability and continuous operation in challenging conditions.
Product information source：https://in.lingyuair.com/product/1130-scfm-refrigerated-air-dryer-air-cooled/
