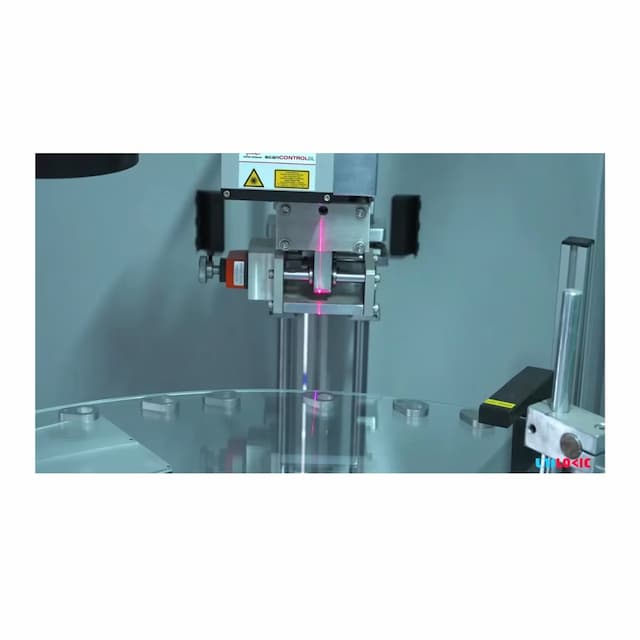

High-precision 3D/2D machine vision Inspection System

The High-Precision 3D/2D Machine Vision Inspection System from Unilogic Technologies Private Limited is an advanced automated quality-inspection solution designed to detect defects, verify dimensions, and ensure product consistency in high-speed manufacturing environments. The system uses industrial cameras, precision optics, and advanced image-processing algorithms to capture detailed images of components and analyze them in real time for quality assurance.

Built as a turnkey inspection platform, the system integrates machine vision cameras, optimized lighting systems, mechanical handling modules, and custom software to perform high-accuracy measurement and defect detection without interrupting production flow. By analyzing captured images through specialized algorithms, the system can automatically determine pass/fail results and identify dimensional variations or surface defects.

The inspection system supports both 2D vision inspection and 3D profiling technologies, enabling manufacturers to perform precise dimensional measurement, surface inspection, orientation verification, and presence/absence checks. Multi-camera configurations and high-resolution imaging allow micron-level accuracy, making the system suitable for critical industrial components such as connectors, fasteners, seals, rivets, and electronic assemblies.

Designed for integration with automated production lines, the system communicates with PLCs, robotic handling systems, and factory automation platforms. Defective parts detected by the vision system can be automatically rejected using pneumatic ejectors or robotic mechanisms, ensuring only quality-approved products proceed to the next production stage.

Unilogic’s vision inspection platforms are widely used in industries such as automotive, electronics, semiconductor manufacturing, aerospace, and industrial machinery, where high-speed, non-contact inspection and precise dimensional measurement are critical for product quality and traceability.

Key Benefits:

• High-precision 2D and 3D visual inspection with micron-level accuracy

• Automated defect detection for surface flaws, cracks, and dimensional errors

• Multi-camera imaging and advanced machine vision algorithms

• Real-time pass/fail decision making for production lines

• Seamless integration with PLCs, robotics, and automation systems

• Eliminates manual inspection errors and improves quality consistency

By combining high-resolution imaging with intelligent vision software, Unilogic’s 3D/2D Machine Vision Inspection Systems enable manufacturers to achieve faster inspection speeds, higher product quality, and fully automated production monitoring.
