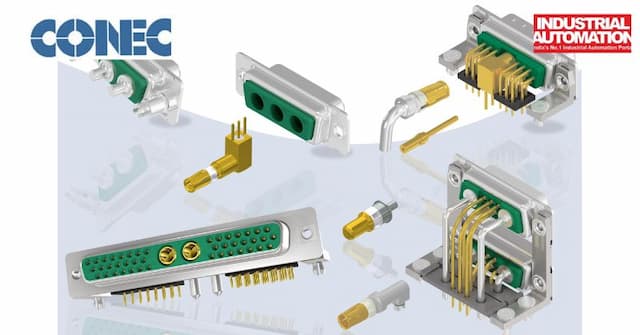

Combination Connectors, CONEC D-SUB

Proven design – new functionality: D-SUB Combination connectors offer more flexibility than other solutions.

CONEC offers a wide range of combination D-SUB connectors for industrial and commercial applications. Combination D-SUB’s can be ideal solutions for requirements such as "shielded RF signals" or "high current on printed circuit boards", all while minimizing the number of connectors and cable assemblies needed. In these cases D-SUB Combination connectors can simplify multiple interface problems. They allow different contact types to be combined without changing the shape, size or installation dimensions. Signal transmission and power supply functions can be integrated in the same connector. Separate interfaces for power supply or coaxial signals are no longer necessary.

With five shell sizes and possible pin combinations of high voltage, power and coaxial CONEC´s D-SUB Combination connectors offer more flexibility than other solutions on the market. For example, this also allows faster connect/disconnect for applications requiring multiple RF connections.

Technical details:

• Power with current ratings up to 40 amps

• Coax in 50 or 75 ohms

• High Voltage contacts for ratings up to 2,8 kV

Included configurations are:

• No hardware, flange has thru holes, typically used in a hood for the cable end

• Flange threads in 4-40 or M3

• Standoffs for straight PCB mounting with or without boardlock clips

• Right angle bracket with mounting hole locations in accordance with the footprint chosen.

Advantages:

• Proven design - new functionality

• 5 housing sizes

• Current rating Power contacts up to 40 A

• Coax contacts 50/75 Ohm

• High-voltage contacts: up to 2.8 kV

• Wide range of mounting options

• High-quality precision machined contacts

Fields of application:

• Aerospace technology

• Mechanical engineering

• Medical technology

• Military

• Telecommunications

• Test and measurement technology

CONEC ElektronischeBauelemente GmbH, Germany. Email: [email protected]
