Docking Frames for Machine Connections
The HARTING IP65/67 Docking Frames enable tool-free, automatic machine and module connections with a blind mating design that eliminates complex wiring and manual plug-in processes. Compatible with HanĀ® monoblocks and Han-ModularĀ® modules, they offer reliable, touch-safe connectivity, flexible alignment compensation, and robust IP65/67 protection for demanding industrial automation applications.
Product Overview

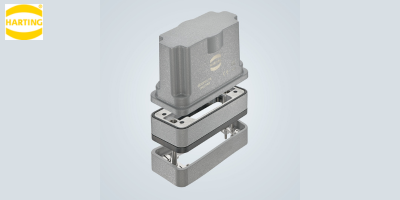

Docking frame for flexible IP65/67 protected machine connections.
HARTING is expanding its range of docking frames with IP65/67 protected solutions available in the standard sizes for industrial connectors (6B to 24B). This allows machine modules as well as tools to be docked automatically – and entirely tool-free. A plug-in process or even hard wiring including cables can be dispensed with "blind mating" option.
A floating side of the docking frame as well as guiding elements provide the necessary flexibility and safety during the plugging process. When docked, the two halves of the housing form an interface. The docking frame can compensate for a lateral offset of 1 mm, while there is a clearance of 1.5 mm for safe and secure mating in the axial direction. After execution, an IP65/67protected connection is created between the seals on both sides.
The IP65/67 docking frames can be used flexibly withHan® monoblocks and Han-Modular® modules. Complete, all-round protection of the interfaces is achieved with housings for rear mounting.
The advantages at a glance:
- Lower production and installation costs thanks to "blind mating" option
- Touchsafe contacts streamline convenient installation, and
- High reliability thanks to protection class IP65/67.
HARTING Technology Group. Tel: 044-43560417. Email: Email: [email protected]
