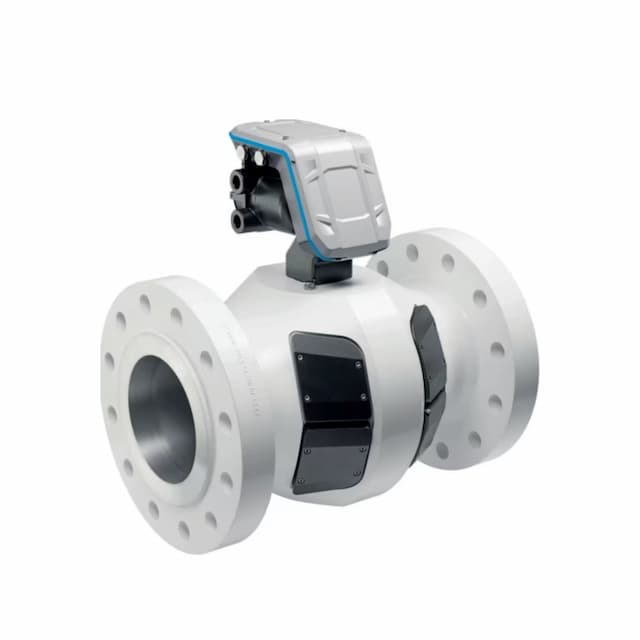

Ultrasonic Flowmeter, FLOWSIC600-XT

Ultrasonic flowmeter for Custody transfer natural gas measurement with intelligent diagnostic functions.

Endress+Hauser offers FLOWSIC600-XT ultrasonic flowmeter for Custody transfer natural gas measurement with intelligent diagnostic functions

Specs at a glance

• Measured variables: Volumetric flow a. c., volume a. c., gas velocity, Speed of sound, optional volume correction via integrated, electronic volume corrector (EVC)

• Measuring Medium: Natural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO2, N2, H2S, O2, H2

• Nominal pipe size: 3 ″ ... 56 ″

• (DN 80 ... DN 1400), other nominal pipe sizes on request

Field of application

FLOWSIC600-XT is available in variants with 4, 4+1, 4+4, and 8 measurement paths. In addition to the OIML R 137 Class 1.0 requirements, FLOWSIC600-XT meets the requirements of Class 0.5 and AGA9 in their entirety. FLOWSIC600-XT contains i-diagnostics™ – an intelligent application diagnostics function – and PowerIn Technology™ for continuous measurement operation for up to three weeks in the event of a mains voltage failure. For the very best possible measurement accuracy and long-term stability.

• Custody transfer measurement of natural gas

• Custody transfer measurement of natural gas with up to 30% H2

• Transport and storage of gas

• Onshore and offshore applications

Device properties

• Automatic adjustment of pressure and temperature influences

• Available for all operating conditions

• PowerIn Technology™ for reliable backup operation

• Intelligent application diagnostics with i-diagnostics™

• Measuring capability up to 30% hydrogen in natural gas

Benefits

• Low measurement uncertainty in every application

• Excellent measurement data reliability and availability

• The right ultrasonic gas flow measuring device for every application – without compromise

• Simple device integration – even in compact systems

• Quick and easy commissioning and checks

• Economical quantification of the H2 content in natural gas
