Coriolis Flowmeter Proline Promass Q 300

Being the preferred choice for custody transfer applications, it has also been optimised for liquid applications where entrained gas is known to be present.

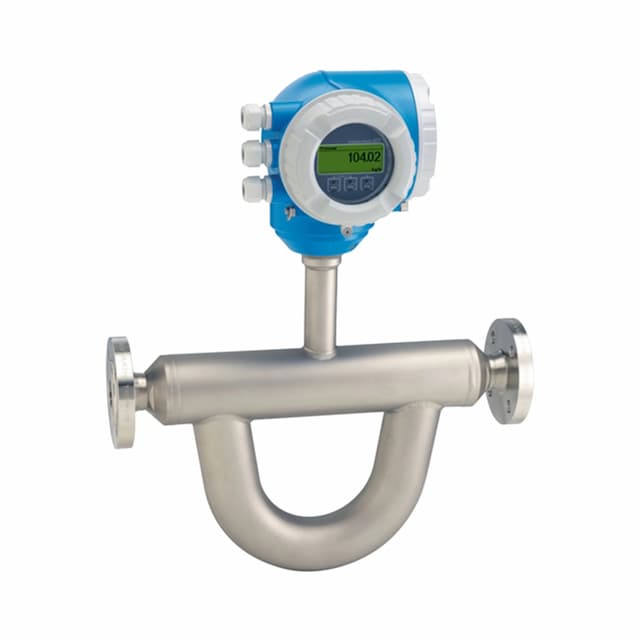

The Endress+Hauser Coriolis flowmeter, Proline Promass Q 300, is an innovative specialist for challenging applications with a compact, easily accessible transmitter.

Promass Q 300 provides the highest measurement accuracy for mass flow, volume flow and density. Being the preferred choice for custody transfer applications, it has also been optimised for liquid applications where entrained gas is known to be present. The compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology ensures safe processes. The measuring principle operates independently of physical fluid properties such as viscosity or density; and highest measurement performance for custody transfer, density and under tough process conditions.

Specs at a glance: Max measurement error – mass flow (liquid): ±0.10 % (standard), 0.05 % (option); Volume flow (liquid): ±0.10 %; Mass flow (gas): ±0.25 %; and Density (liquid): +/-0.2 kg/m³ (standard), +/-0.1 kg/m³ (option). Measuring range – 0 to 2 400 000 kg/h (0 to 88183 lb/min). Medium temperature range – Standard: –50 to +205°C (–58 to +401 °F); and Option: –196 to +150 °C (–321 to +302 °F). Max process pressure – PN 100, Class 600, 63K. Wetted materials – Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications; Connection: 1.4404 (316/316L).

Device properties

-Mass/volume flow: measurement error ±0.05 % (opt.) (PremiumCal)

-Density: measurement error ±0.1 kg/m³ (opt.)

-High turndown due to low pressure loss/zero point

-Compact dual-compartment housing with up to 3 I/Os

-Backlit display with touch control and WLAN access, and

-Remote display available.
