HIWIN EDM Rotary Table Lineup

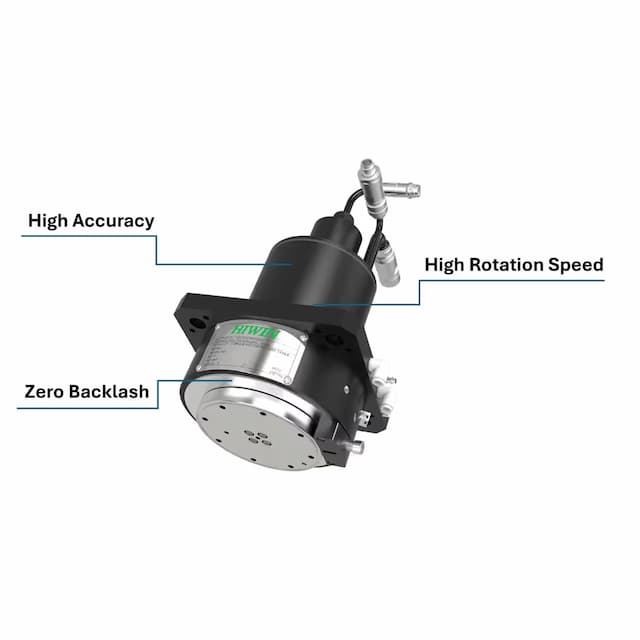

The RCV E underwater rotary table sets a new benchmark for wire EDM.

HIWIN’s EDM rotary table lineup – RCV E, RCH E, and RAS E – is purpose built to elevate the mechanical accuracy of EDM machines, ensuring stable, repeatable, and distortion free discharge machining.

The RCV E underwater rotary table sets a new benchmark for wire EDM. Its IP68 waterproof architecture, combined with a non contact direct drive motor, eliminates mechanical wear and prevents internal electrical leakage. A built in encoder guarantees zero backlash and precise positioning under high speed motion, supporting rotational speeds up to 1000 rpm (RCV 125E) with axial runout of ≤ 0.005 mm. This stability ensures consistent kerf width and superior edge integrity.

For die sinking applications, the RCH E C axis series delivers continuous rotation and high torque for shaping electrodes and machining deep or narrow cavities. Equipped with a compact synchronous motor and absolute encoder, RCH E maintains precise angular indexing even during demanding discharge cycles.

The RAS E dual axis rotary table offers high accuracy tilting and rotation for complex angled holes and multidirectional geometries. With ±8 arc sec positioning accuracy and ±3 arc sec repeatability, it enables reliable machining of turbine cooling holes, diffusers, and advanced EDM drilled features.

Across all EDM series, HIWIN’s direct drive architecture, high rigidity bearings, and advanced insulation design deliver unmatched stability and long term accuracy – ensuring that every discharge pulse shapes the workpiece exactly as intended.
