ISB-TR10

Key Features

• Standard CEB form factor 12” x 10.5” (305 x 267mm): Easy integration, space-efficient design
• Single Socket SP5 (LGA 6096), supports AMD EPYC™ 9005/9004 series processors
• 8x DIMM slots (1DPC), supports DDR5 RDIMM 6400 MT/s
• High flexibility of PCIe configurations: 4x PCIe5.0 x16, 2x PCIe5.0 x8, 1 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 4 MCIO (PCIe5.0 x8 )
• Supports 2 M.2 (PCIe5.0 x4 or SATA 6Gb/s)

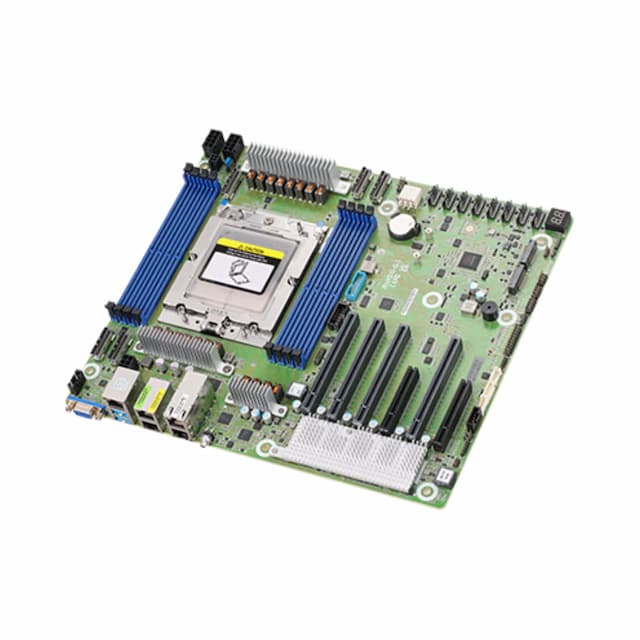

The ADLINK ISB-TR10 is a high-performance CEB server motherboard powered by AMD EPYC™ 9005/9004 series processors. It features a robust architecture supporting up to 2TB of DDR5-6400 RDIMM memory and 6x PCIe Gen5 slots, providing a powerful foundation for demanding server workloads, AI inference, and data-intensive applications.

Key Value Propositions

1. Elite Expansion: Offers 6x PCIe Gen5 slots and 5x MCIO x8 connectors for maximum I/O flexibility.
2. Versatile Storage: Integrates 2x M.2 NVMe/SATA and flexible SATA support via MCIO for high-speed data handling.
3. Optimized Form Factor: The standard 12" x 10.5" CEB size ensures easy integration into space-efficient server chassis.

Maximum memory capacity depends on installed DIMM type: up to 128GB per slot with RDIMM, or 256GB per slot with RDIMM-3DS.
