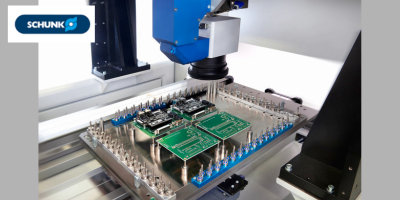

Laser Depaneling Machine, SAL-1300

The SAL-1300 separates panels with high-speed laser technology

At Productronica 2023, SCHUNK Electronic Solutions showcased the SAL-1300, the first laser depaneling machine in the depaneling machine family. This compact stand-alone machine with speedLAS® technology makes laser-based depaneling at high speeds possible. The laser reduces process times by up to 80% while also ensuring optimal cut quality. Source-independent lasering and the possibility of combining laser processing with milling technology on one machine create a high degree of flexibility.

The laser has established itself as an accurate, clean and efficient tool in many fields. With the new SAL-1300 laser depaneling system, SCHUNK is taking full advantage of these benefits. For the first time, the innovative speedLAS® technology developed by SCHUNK for the SAL-1300 is making it possible to control the laser using a special scanner in such a way that its movements are able to superimpose those of the axes. The speedLAS®technology ensures that the light from the laser is always aligned at a perpendicular angle to the workpiece, regardless of the axis movement. This ensures uniform energy input and therefore also precision cuts right into the edge areas. Compared to previous laser applications, the SAL-1300 also delivers up to an 80% faster processing speed.

The SAL-1300 works independent of the laser source – this means that it is possible to use any wavelength. It also allows the best laser source to be chosen for every material. To this end, SCHUNK relies on comprehensive process support in collaboration with its cooperation partner Dr. BohrerLasertech GmbH. The basis for selecting the best possible laser source for each requirement lies in experience and a precise analysis of the materials to be processed using a scanning electron microscope.
