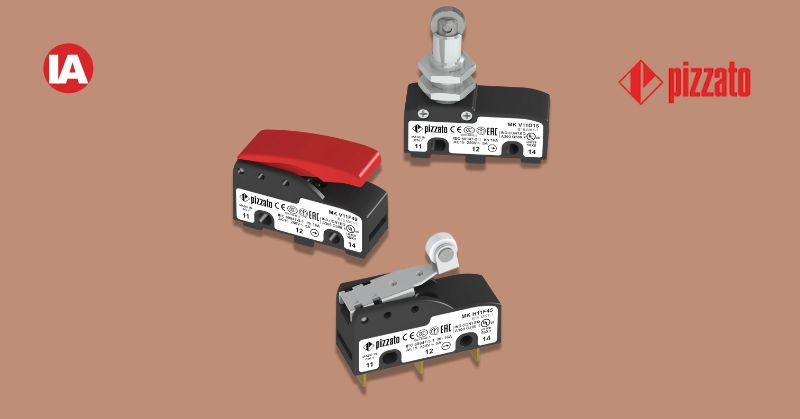

The MK series microswitches by Pizzato Elettrica set a new benchmark in safety applications, featuring positive opening for enhanced reliability. With an innovative trigger mechanism, redundant contact execution, and optimized design, these microswitches ensure maximum performance while minimizing failure risks. Designed to withstand harsh environments, they offer customizable installation options and extended temperature resistance for versatile industrial applications.
All microswitches with positive opening are suitable for safety applications.
MK series microswitches by Pizzato guarantee the highest quality levels and boast an enhanced and state-of-the-art trigger mechanism.
Thanks to the double and redundant execution, the electrical contact of the microswitch has been designed with a technology providing increased reliability, and is able to carry out switching operations with positive opening.
All microswitches with positive opening are suitable for safety applications. These devices are provided with a rigid connection between the plunger and the NC contacts, which are forcibly actuated by an internal sturdy safety lever.
Contrarily to other microswitches normally used in the industry, Pizzato’s MK series microswitches feature a distinct contact structure: mobile contact with single interruption and double contacts, rather than just mobile contact with single interruption. This design reduces contact resistance by half compared to the conventional structure and significantly lowers the probability of failure.
Inside the housing of the microswitch it is possible to insert gaskets to protect the mechanism against fine dusts or liquids. Conductor fixing terminals are more practical, allowing for cables of different diameters to be fixed or allowing the choice of different bends for the Faston contacts.
The actuating roller of the microswitches can be rotated in 90° steps. The lateral fixing allows to disconnect the actuator from the switch body even when the actuator is already fixed to the support bracket.
The clamping screw plates are provided with a particular “roofing tile” structure and are loosely coupled to the clamping screw. The design causes connection wires of different diameter to be pulled towards the screw when tightening the screw, preventing the wires from escaping towards the outside.
MK series includes versions with extended temperature range available upon request. The special materials used to produce these versions retain their characteristics even in environments with temperature ranges from -40 °C to +85 °C, thus expanding the installation possibilities.
Pizzato Elettrica is one of the leading European manufacturers of position switches, microswitches, safety devices, safety modules, foot switches, control and signalling devices, and devices for elevators. An entrepreneurial company such as Pizzato Elettrica bases its foundations on a solid and widely shared value system. The pillars that form the basis of the company’s work have remained constant, and constitute the fundamental guiding principles for all company activities.
All Pizzato Elettrica products are designed, developed, and tested entirely at the company plants in Marostica, in the province of Vicenza in Italy. The company is thus able to meet specific customer requirements at all times, by offering a comprehensive range of products and technologically advanced solutions.
